Winters P302 Low Pressure Gauge 0-55"

Winters P302 Low Pressure Gauge 0-55" Review

Winters P302 Low Pressure Gauge 0-55" Feature

• Winters Instruments
• P302
• Gas Gauges

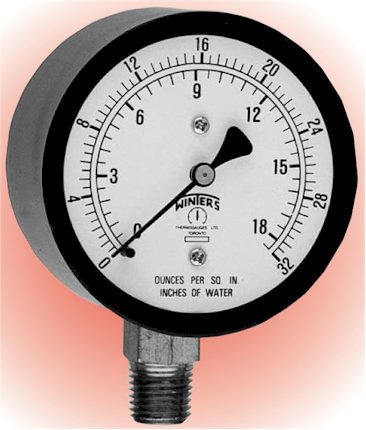

Winters P302 Low Pressure Gauge 0-55"The Winters P302 Low Pressure Gauge 0-55" is ideally suited for low pressure measurement where the conventional bourdon tube cannot perform reliably. Typical applications include air flow indicators, liquid level indicators, leak testers, draft gauges, natural gas gauges, and any other application that requires quick and precise measurement of pressures below 15 psi [103 kPa]. Winters' Low Pressure gauge is CRN registered.* Dial face image will vary according to specificationsWinters P302 Low Pressure Gauge 0-55" Specifications:; Dial: 21/2" (63mm) white aluminum dial with black and red markings; Case: Steel, painted black; Lens: 21/2" (63mm) - polycarbonate; Ring: 21/2" (63mm) steel ; Back Flange: Steel, painted black; Pointer: Aluminum, anodized black; Socket: Brass; Connection: 1/4" NPT standard; Diaphragm Element: Phosphor Bronze; Movement: Engineering plastic upper and lower plate with brass pinion and sector; Working Pressure: 60% of full scale value (fluctuating); 75% of full scale value (static); Ambient Temperature: -40F to 150F (-40C to 65C); Process Temperature: -40F to 150F (-40C to 65C); Accuracy: +/-1% accuracy
